12V Power Hauler System™

crab pot puller full view 12 volt Power Hauler™

Power Hauler model HD923EX

This is our Power Hauler gear retrieval and delivery system with power up and down. Our reversing power switch allows the Power Hauler to both pull gear and equipment up or controlled powered down.

Besides pulling fishing gear applications include: Lifting and lowering kicker motors, rafts and fishing gear in and out of your boat, ROV inspection systems, underwater sensor/mapping equipment, equipment retrieval and deployment.

Our optional aluminum winch drum conversion kit replaces the Power Hauler sheave with a 5-1/2 or 8 inch drum capable of holding 150 / 600 ft. of 1/8 inch wire rope or high performance braid such as Amsteel.

Our custom three piece design allows you to breakdown the davit for easy transport, storage, and removal off your boat or skiff.

Standard with our heavy duty powerdrive with a zero maintenance sealed gear reduction box with oversized bearings and extra large worm gear.

Schedule 80 aluminum tubing and 1/4 inch plate construction.

For added safety we equipped the Power Hauler with a special line deflector to keep the line from wrapping.

front view
Shown with optional 8 inch
winch drum conversion

sheave grooveOur exclusive Power Hauler™ line sheave is designed with our exclusive Power Grip technology*. The Power Grip is made out of our specially engineered extremely tough, abrasion resistant, and semi elastic material.

The Power Grip is formed over a solid aluminum disk that instantly grabs hold of the line with minimal operator effort. This design offers the unique advantage that as the pull increases so does the grip on the line. An added benefit it will not slip like other manufacturers that use metal disks or solid aluminum channels making for a virtually hands free operation.

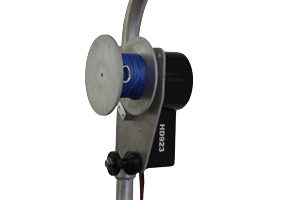

winch drum


Shown with 150ft.
of 1/8 in. Amsteel Blue
Not Included
We construct the fiberglass motor cover by hand and finished it with a gloss black gel coat.

Additionally equipped with a momentary spring to off reversing power switch and waterproof switch box and an 8 inch open face pulley block.



power switch


Reversing
Power Switch
Other features include:

  • UHMW fairlead roller.
  • 1/4 in.thick pulley block bracket.
  • A heavy duty 6 gauge easy flex wire harness with our auto resetting breaker.
  • One 3/8 stainless wire lock hitch pin to lock the davit into fishing/stowed positions.
  • Two 1/4 stainless wire lock hitch pins used to lock the two parts of the davit together.
  • Preimium UHMW sleeved gunnel and base mount brackets.
    Other mounts available - see brackets department.
demensions



      Click for larger view








*Patent Pending
